Hidrobrasil Einständerpresse

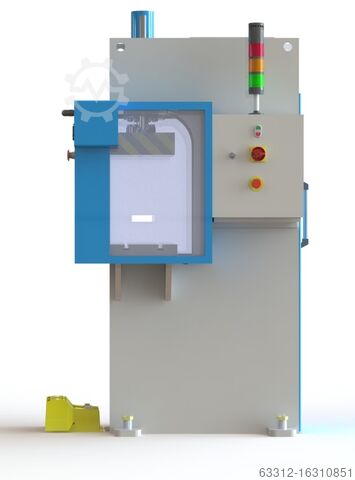

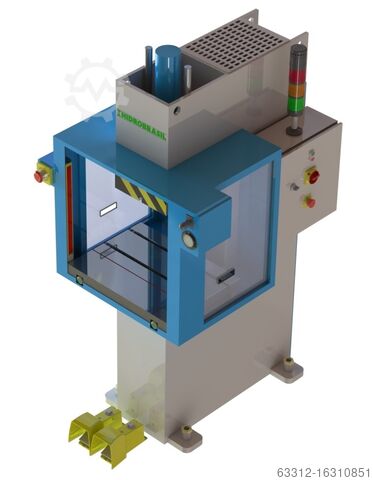

Hidrobrasil Tablet Press – 20 t – C-Frame – Manual Loading Press Pgebmzfwotv Ewdo Igjt For sale is a hydraulic single-column press (C-frame) from Hidrobrasil with a pressing force of 20 t, specifically designed for applications in the pharmaceutical and chemical industries. The machine is ideally suited for the production of tablets, as well as for precise pressing and forming tasks in smaller batch production and laboratory applications. ==== Technical Data & Information: Hydraulic Tablet Press – 20 t ==== General Information - Manufacturer: Hidrobrasil - Model: Single-Column Press - Machine type: Tablet Press - Design: C-Frame / Single-Column Press - Year of manufacture: 2023 - Location: Gelsenkirchen, Germany - Pressing force: max. 20 t - Machine weight: approx. 2 t - Total height: approx. 2,400 mm ==== Working Area - Max. opening width: 500 mm - Stroke / min. opening: 400 / 100 mm - Table height above floor: 800 mm ==== Speeds - Rapid closing: 120 mm/sec - Pressing speed: 5–10 mm/sec ==== Hydraulics & Drive - Operating pressure: max. 250 bar - Pressure accuracy: ±5 bar - Main pump: Gear pump, approx. 10 l/min - Oil volume: approx. 150 l (HLP 46) - Main motor: 22 kW - Total connected load: approx. 6 kW ==== Precision & Stability - Parallelism deviation: ±0.1 mm at 20 °C - Deflection: max. 0.3 mm/m ==== Control & Safety - Control voltage: 24 V DC - Light barriers: SICK / Pilz / Schmersal - Two-hand control, optionally foot control - Safety design complies with EU standards and UVV ==== Equipment - Table top designed as a tray with 50 mm edge and drain - Position adjustment via sensors - Pressure adjustment: 5–20 t via rotary control - Control cabinet mounted on the right, protection class IP54 ==== Production & Features - Multi-tool: 8 pressing cylinders - Output: approx. 8–12 parts per minute - Hydraulic unit fully removable for maintenance ===== Tablet production, pharmaceutical industry, chemical applications, laboratory presses, small batch manufacturing Hydraulic press, tablet press, single-column press, C-frame press, pharma press, laboratory press Are you looking for a hydraulic press tailored to your specific application? Contact us for a customized quote. Our hydraulic presses are manufactured according to German and European machinery directives (Directive 2006/42/EC), EC standards, and EU safety regulations. Furthermore, our presses exceed Canadian and European safety requirements as they comply with all aspects of the Brazilian national safety directive NR 12, which is based on these standards. Our main strength is custom machine building and press automation. We offer bespoke hydraulic presses at surprisingly affordable prices. We primarily use components from leading European manufacturers for the hydraulic systems of our presses.
